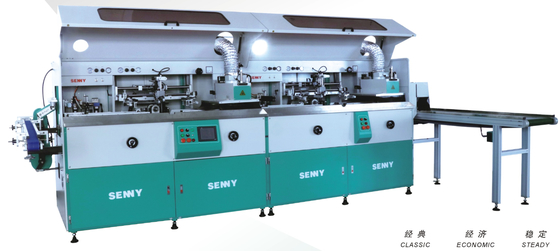

Fully Automatic 4 Color Screen Printing Machine CE Certified
Detalhes do produto:
| Lugar de origem: | Dongguan China |
| Marca: | SENNY |
| Certificação: | CE |
| Número do modelo: | SL1688 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Embalagem de madeira compensada |
| Tempo de entrega: | 45 dias |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 10 PCes/mês |
|
Informação detalhada |
|||
| Nota automática: | Totalmente automático | Cores impressas: | 4 cores |
|---|---|---|---|
| Garantia: | 1 ano | Tipo de placa: | Impressora de tela |
| Qualidade da impressão: | Alta durabilidade | Serviços pós-venda: | Vídeo ou online |
| Destaque: | Impressora de tela de garrafa certificada CE, 4 cores e servo de controle digital unidade | ||
| Destacar: | 4 color automatic screen printing machine,fully automatic labeling machine,screen printing machine with warranty |
||
Descrição de produto
Machine Features

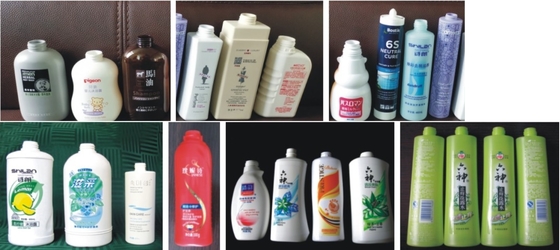

- The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles.
- The machine has perfect transmission design, stable running, fast changeover, easy operation and it meets CE certification.
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.

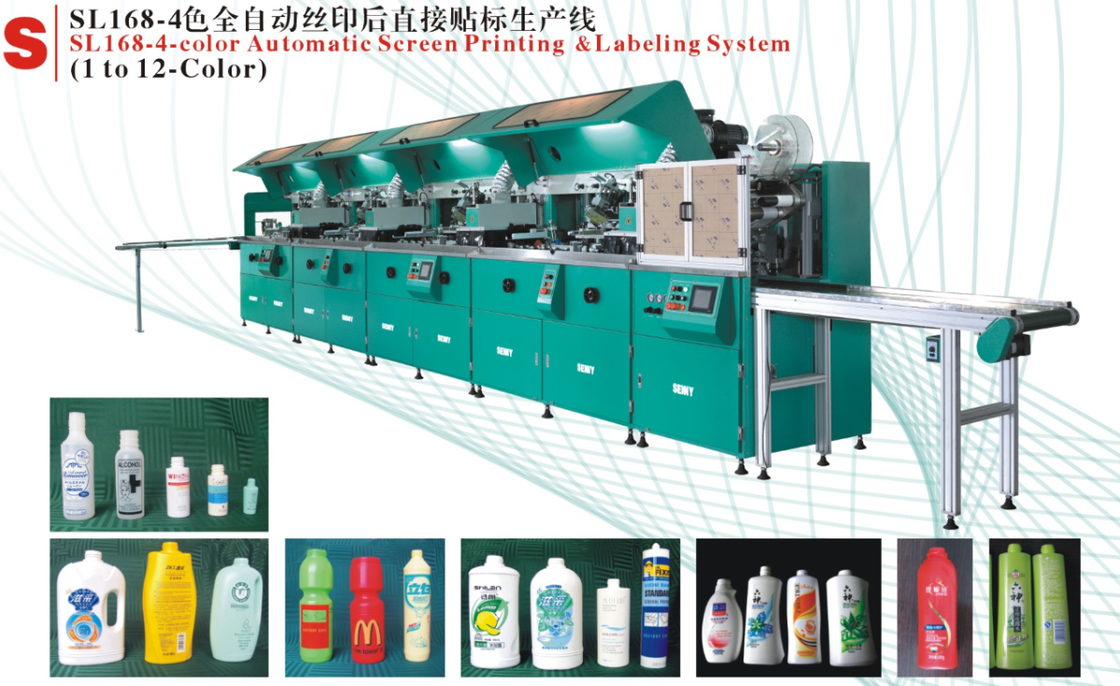

- The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi-functional printing machine.
Optional Configuration
- Plasma surface treatment function •Hot stamping function. •Labeling function. •LED-UV curing function
Technical Parameters
| Model Machine | SL1666 | SL1688 |
|
Printing Speed
|
up to 85pcs/min | up to 85pcs/min |
|
Round Bottle Diameter
|
20-100mm | 20-100mm |
|
Oval Bottle Radius
|
25-250mm | |
|
Oval/Flat Bottle Width
|
20-130mm | |
|
Bottle Height
|
50–300mm |
50–300mm
|
| Max Length | 300mm | 300mm |
| Max Hight | 250mm | 250mm |
Printing your vision
