High-Efficiency Flat Screen Printing Machine For Plastic Tubes And Round Cans 5000pcs/Hr
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | Senny |
| Certificação: | CE SGS |
| Número do modelo: | SR818/818-S2 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Pacote de madeira compensada |
| Tempo de entrega: | um mês |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 10pcs/mês |
|
Informação detalhada |
|||
| Cores impressas: | 1 cor | Tipo de placa: | máquina de impressão da tela |
|---|---|---|---|
| Durabilidade da impressão: | Alta durabilidade | Velocidade: | Até 70pcs/minuto |
| Garantia: | 1 ano | Serviço pós-venda: | Vídeo ou on-line |
| Detalhes do pacote: | Pacote de madeira compensada | Certificação: | CE SGS |
| Termos de pagamento: | T/T. | ||
Descrição de produto

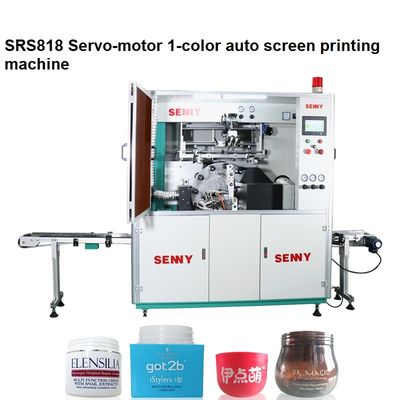

High-Efficiency Flat Screen Printing Machine For Plastic Tubes And Round Cans 5000pcs/Hr

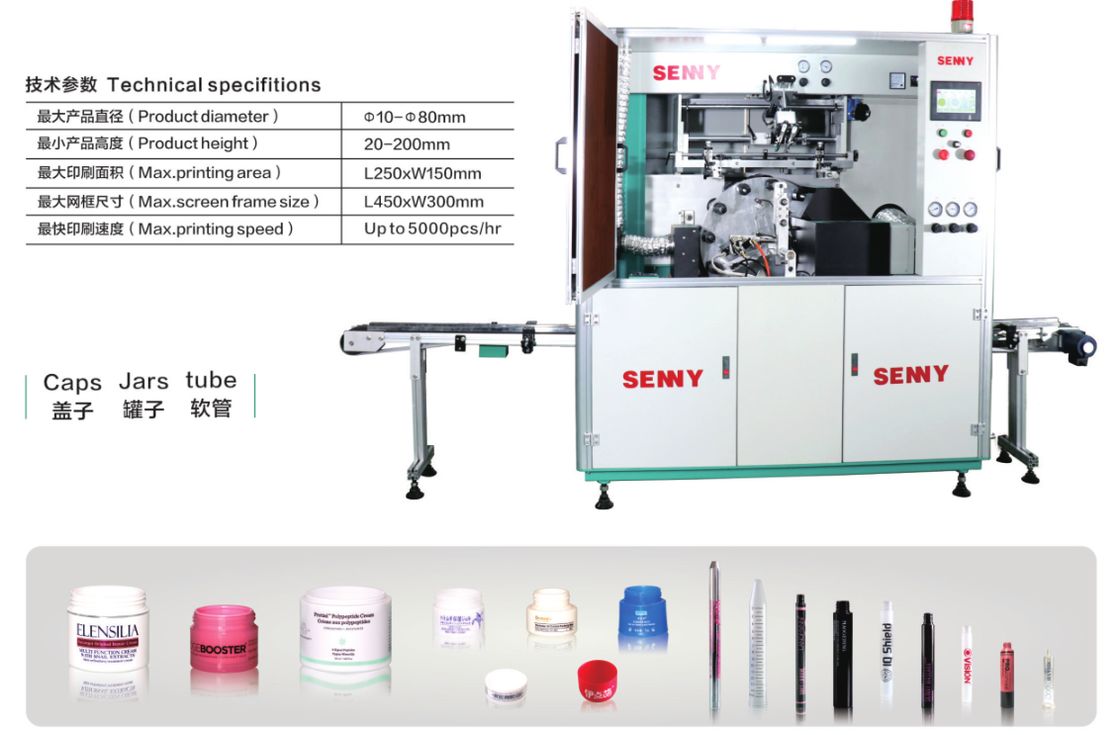

Technical specification:
| Model | SR818 | SR818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Applications and Features:
1. Automatic screen printing machine for plastic tubes, round cans and round caps with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function.
2. Different types of machines can be manufactured upon request, such as internal mode printing or clamp type printing.
3. Servo-driven with color-code pre-register function or servo-driven visual pre-register function can be selected.
4. With touch screen for easy man-machine dialog and perfect alarm system.
Applications:
SRS818-S2 Flatbed Screen Printing Machine is a flatbed screen printing machine. The printing scope is very wide and it can be used for screen printing of many plane bodies such as circuit boards, plastic panels, metal sheets, glass substrates, ceramic tiles, wooden plaques, and acrylic plates, etc.
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.

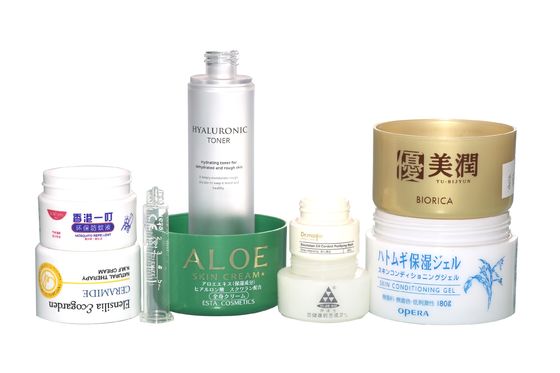

Printing sample
About us:
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
