Servo Motor Driven 8 Color Flat Screen Printing Machine For Container 6000pcs/Hr
Detalhes do produto:
| Lugar de origem: | Dongguan China |
| Marca: | SENNY |
| Certificação: | CE SGS |
| Número do modelo: | SL1688 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Pacote de madeira compensada |
| Tempo de entrega: | um mês |
| Termos de pagamento: | TT ou LC |
| Habilidade da fonte: | 10pcs/mês |
|
Informação detalhada |
|||
| Nota automática: | Totalmente automático | Estações: | 1 a 8 |
|---|---|---|---|
| Tipo de placa: | Impressora de tela | Serviço pós-venda: | Vídeo ou on-line |
| Cores impressas: | 1 a 8 | Marca: | Senny ou OEM |
| Pacote de detecção: | Pacote de madeira compensada | Termos de pagamento: | T/T. |
| Certificação: | CE | Garantia: | 1 ano |
| Habilidade da fonte: | 5pcs/mês | ||
| Destacar: | servo motor flat screen printing machine,8 color container printing machine,high-speed flat screen printer 6000pcs/hr |
||
Descrição de produto

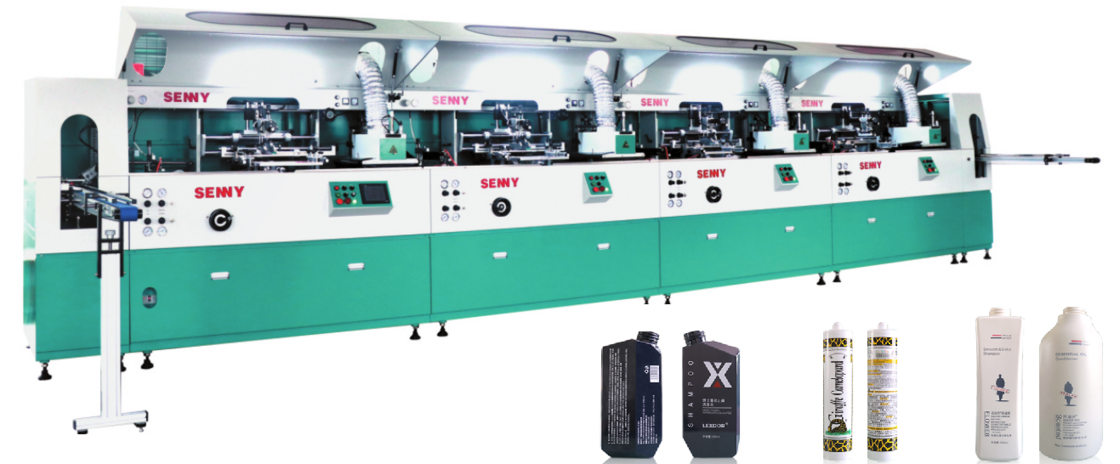

Servo Motor Driven 8 Color Flat Screen Printing Machine For Container 6000pcs/Hr
This machine is designed for cylindrical,elliptical and flat bottles,it is widely used in chemical and food package.
SAFE EFFIENCY INNOVATIVE
* SL1688 Aervo-driven automatic machine for silk-screen printing of containers in plastic or other materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.
* Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format.
* Linear unit structure combination: option of adding up to a total of eight in-line colors .
* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
* In-feeding parts includes:in-feeding belt and machine hand for side-selection.
* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
* Flame treatment for round,elliptical and rectangle container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system :device for adjusting light freely(LED UV curing system can be as a replacement)
* Elliptical and square container side-selection for auxiliary machine section
* Output parts:Machine hand for container standing up and belt
* Conform to CE standard.
Technical Specifications:
| Max production speed | 6000pcs/hr |
| Min. Diameter of cylindrical container | 20mm |
| Max.Diameter of cylindrical container | 120mm |
| Min. Radius of elliptical container | 30mm |
| Max. Radius of elliptical container | 250mm |
| Max. Width or elliptical and flat container | 120mm |
| Min. Length of elliptical and flat container | 50mm |
| Max. Length of elliptical and flat container | 300mm |
| Max. printing width | 250mm |
| Max. printing length | 300mm |
Printing devices

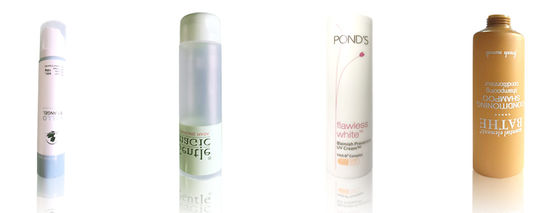

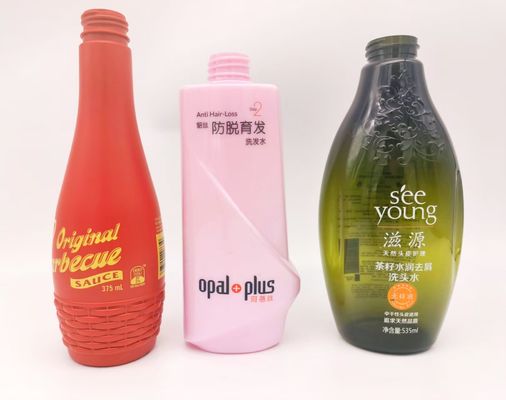

Printing samples
Exihibition Show
