Fully Automatic Screen Printing Machine with PLC Control Touch Screen Display and 1 Year Warranty for High-Speed Glass Bottle Printing
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | Senny |
| Certificação: | CE SGS |
| Número do modelo: | SC1524 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Pacote de madeira compensada |
| Tempo de entrega: | um mês |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 10pcs/mês |
|
Informação detalhada |
|||
| Estações: | 1 | Cores impressas: | 1 cores |
|---|---|---|---|
| Durabilidade da impressão: | Alta durabilidade | Tipo de placa: | Impressora de tela |
| Garantia: | 1 ano | Grau automático: | Automático |
| Detalhes do pacote: | Pacote de madeira compensada | Termos de pagamento: | T/T. |
| Certificação: | CE | Serviço pós-venda: | Vídeo ou on-line |
| Habilidade da fonte: | 5pcs/mês | ||
| Destacar: | fully automatic screen printing machine for glass,high energy UV curing screen printer,2400pcs/hr glass bottle printing machine |
||
Descrição de produto

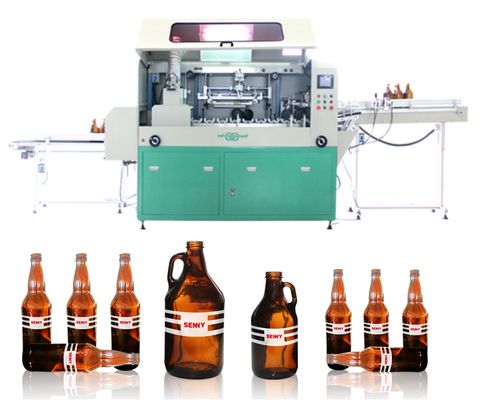

High energy UV curing Fully Automatic Screen Printing Machine For Glass Bottle Up To 2400pcs/Hr
Features:
- Adopts a simple technique to solve the register problem without point positioning. The key is printing with hot-melt high-temperature glass ink, followed by cauterization in a high-temperature oven to integrate the ink with glass. The pattern is firm, allowing repeated bottle washing to reduce environmental pollution and save costs.
- The innovative transmission system enables stable bottle transfer, facilitates quick changeover between different bottle types, and is easy to operate.
- Adopts PLC control and touch screen display, and is equipped with various monitoring systems to ensure the machine operates at high speed and stably.
- Based on product characteristics, the machine can be equipped with functions like automatic loading/unloading and no-bottle no-printing.
- All components are sourced from Germany, the USA and Japan to guarantee machine quality and printing stability.
- Supports Chinese, English and Spanish.
- The machine can be customized for special products.
Main Components:
- Standing feeding belt
- Flat conversion feeding mechanism
- Divider driving start and stop
- Chain and v-plate conveying products
- Automatic screen printing
- High energy UV curing
- Discharging conversion standing belt
- Standing discharging conveyor belt, which can be connected with the production line.
Technical Specifications:
We designed 2 different machines SC128 and SC1524 according to cylindrical container's diameter and height and printing speed:
| Model | SC128 | SC1524 |
| Cylindrical container diameter | Φ30 - Φ100mm | Φ30 - Φ130mm |
| Container height | 50 - 300mm | 50 - 350mm |
| Max. printing speed | Up to 3000pcs/hr | Up to 2400pcs/hr |
Application:
The SC1524 is designed for high-precision one-color screen printing on a variety of glass containers, such as high-end wine bottles, industrial beer bottles, beverage bottles, daily glasses, goblets and oil filters. It can also be customized for three-color or four-color printing according to specific customer needs.
Widely used in both domestic (covering major glass packaging hubs) and global markets, the project features small initial investment and quick returns—usually recovering costs within one year. Therefore, it is well accepted by many enterprises.

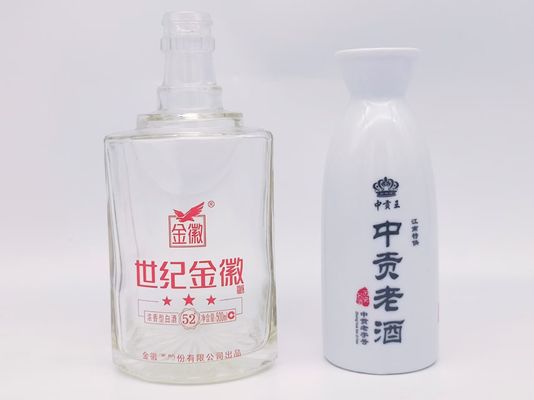

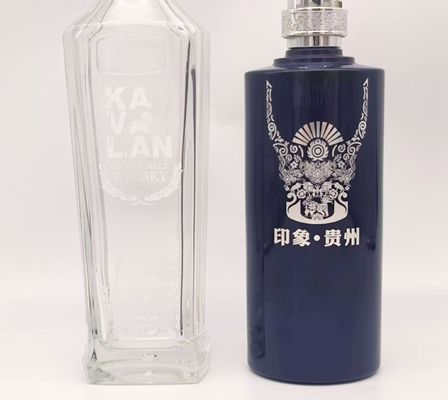

Printing samples
Exihibition Show
