CNC Automatic Tube Screen Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management
Detalhes do produto:
| Lugar de origem: | Dongguan China |
| Marca: | SENNY |
| Certificação: | CE SGS |
| Número do modelo: | SRS1039 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Pacote de madeira compensada |
| Tempo de entrega: | 45 dias |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 10 PCs/mês |
|
Informação detalhada |
|||
| Número do modelo: | SRS1039 | Cor impressa: | 3 cores |
|---|---|---|---|
| Marca: | Senny | Garantia: | 1 ano |
| Tipo de placa: | máquina de impressão da tela | Serviços Pós-Venda: | Vídeo ou on-line |
| Destacar: | 3-color tube screen printing machine,45pcs/min automatic printing machine,CNC tube screen printing machine |
||
Descrição de produto

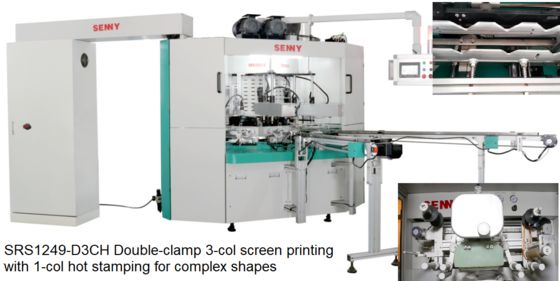

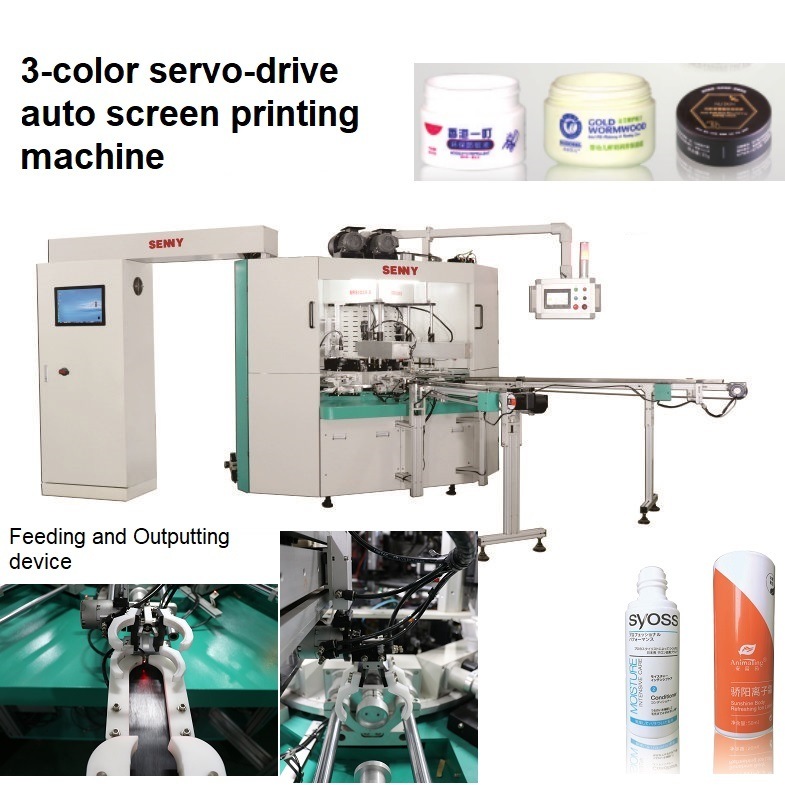

3-Color 45pcs/Min Tubes CNC Automatic Printing Machine
Machine Feature
-

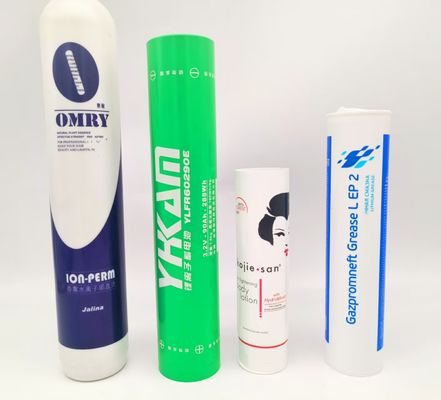

SRS1039 is suitable for applying various decorative techniques—including screen printing with UV inks of multiple colors and hot stamping—on products of different shapes, such as bottles, caps, and jars. These items can be crafted from materials like plastic, metal, and glass.
-
Designed specifically for printing on small containers, this machine has a compact structure and takes up minimal space.
-
With an integrated turntable design, the machine completes all printing functions using the same set of fixtures. It offers printing accuracy as high as ±0.1 mm and guarantees no scratches on the products.
-
Driven by a digitally controlled motor, the machine allows for 360-degree printing of products. Additionally, it comes with remote management and service functions, meeting Industry 4.0 requirements.
-
The machine uses electrical components from renowned brands, incorporates a PLC control system, and supports user-friendly operation through a touch screen and a wireless tablet, ensuring stable and reliable performance.
Optional Configuration
- Plasma surface treatment function. Hot stamping function. Visual registration function.
- LED-UV curing system. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS1039 |
| Work Station | 10 |
| Printing Color | 3 colors |
| Container Height | 20-200mm |
| Diameter at 360 Degree | 13-60mm |
| Printing Speed | Up to45 pcs/min |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
Printing your vision
About us:
Senny serves food, medicine, toys, cosmetics, daily chemicals, electronics, decorative products and other industries. Through the use of automatic printing technologies, such as screen printing,pad printing, hot stamping, labeling, offset printing and digital printing, it realizes printing high-quality exquisite graphics & texts on the surface of various shapes of products such as plastic, metal, glass
and ceramics.
