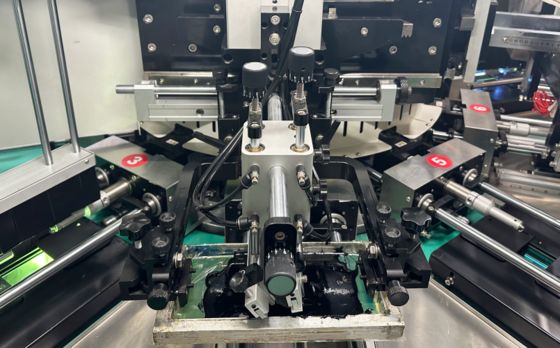

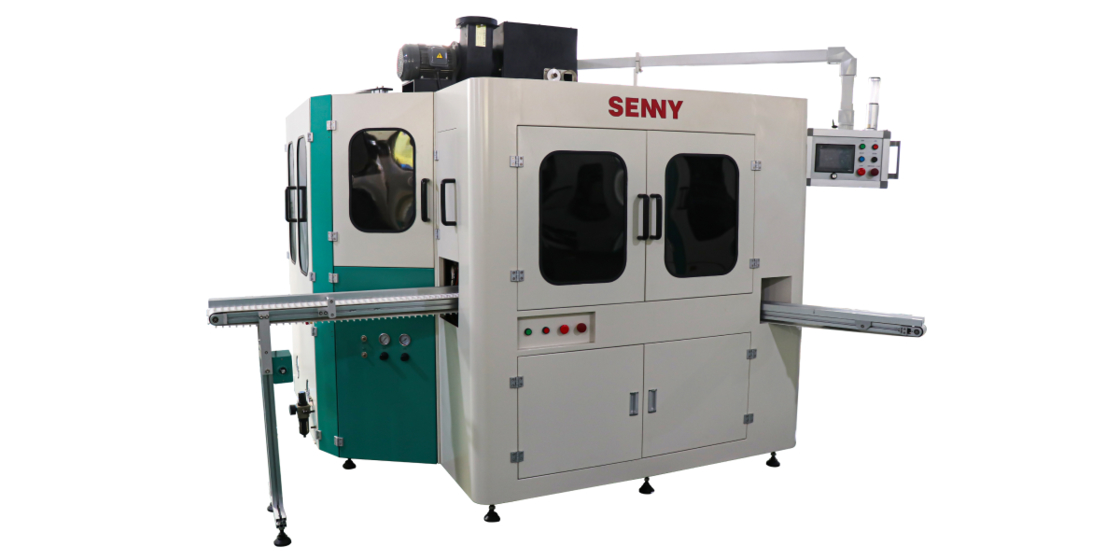

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min
Detalhes do produto:
| Lugar de origem: | Dongguan China |
| Marca: | SENNY |
| Certificação: | CE SGS |
| Número do modelo: | SRS826 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Pacote de madeira compensada |
| Tempo de entrega: | 45 dias |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 10 PCs/mês |
|
Informação detalhada |
|||
| Número do modelo: | SRS826 | Cor de impressão: | 2 cores |
|---|---|---|---|
| Tipo de placa: | máquina de impressão da tela | Garantia: | 1 ano |
| Serviços Pós-Venda: | Vídeo ou on-line | Detalhes da embalagem: | Pacote de madeira compensada |
Descrição de produto
8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min
Machine Feature
- The machine is suitable for screen printing of various colors of UV ink,hot stamping,varnishing and other decorations on plastic soft tubes.
- The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm.
- The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and service functions(industry 4.0).
- The machine adopts well-known brand electrical components, PLC control system,easy-to-use touch screen and wireless tablet operation,with reliable performance.
Optional Configuration
- Unscrambling & feeding machine. Hot stamping function. Plasma surface treatment function.
- Visual registration function. LED-UV Curing function. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS826 |
| Work Station | 8 |
| Printing Speed | Up to 80 pcs/min |
| Soft Tube Diameter | 15-75mm |
| Soft Tube Height | 60-220mm |
| Max.Printing Length | 220mm |
| Max.Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |

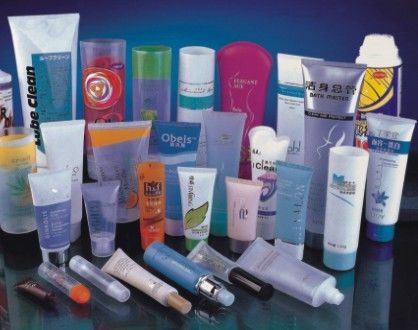

Printing Sample
About us:
In 2020, Shenli provided Russian customers with a CNC 1-color glazing + 3-color screen printing UV curing production line for hoses. Since then, Shenli has been capable of offering customers the production capacity of various CNC multi-color screen printing, gold stamping and quality inspection machines for hoses.
